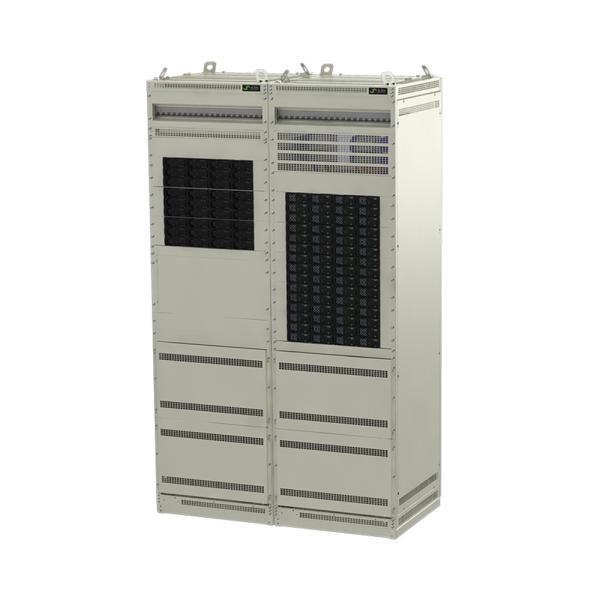

Eltek Flatpack2 Integrated Power System 120kW With Optional A & B AC Input

Product Categories
Shenzhen Xingda Shidai Technology Co., Ltd.
Contact Now

Eltek Flatpack2 Integrated Power System 120kW With Optional A & B AC Input

Place of Origin : Guangdong, China

Brand Name : Eltek

Model Number : Rectiverter Scalable System 120kW

Packaging Details : Cartons or Wooden Frame

Supply Ability : 1000 Set/Sets per Month

Price : $1,500.00/sets >=1 sets

Output Power : 72kw

Output Type : Triple

Input Voltage : 475VAC / 58VDC (Maximum)

Output Voltage : 415VAC / 58VDC

Output Frequency : 45-60Hz

Output Current : 1500ADC

Model : Rectiverter Scalable System 120kW

Warranty : 12 months

Customized support : OEM ODM Support

DC Input Current (maximum) : 1920A

Max input Voltage : 475VAC / 58VDC

Max Output Voltage : 415VAC / 58VDC

Dimensions WxHxD (mm) : 1200 x 2000 x 600mm

Weight : 500kg

Ingress Protection (IP) : IP20

Operating temperature : -40 - 55 °C

Port : shenzhen

Contact Now

New Eltek Indoor Rectiverter Scalable System 120kW with Optional A & B AC Input (CDEJ6042.xxxx)

Product Description
Eltek Flatpack2 Integrated Power System 120kW With Optional A & B AC Input
Rectiverter Scalable System 120 kW
The scalable Rectiverter indoor system provides backup power for 400 VAC 3-phase or 230 VAC 1-phase loads, and 48 VDC power for DC loads and battery charging.
The system has a maximum load capacity of 108 kW, which is dynamically variable to provide AC outputs up to 90 kVA / 72kW and also feed DC loads up to 72 kW with built in AC & DC distribution.

When used in combination with the optional B-input (dual AC input) which eliminates the need for a traditional ATS (Automatic
Transfer Switch), the Rectiverter indoor system represents the ultimate in flexibility and scalability.
Key features
* 400 VAC 3 phase (Y) input
* 400 VAC 3 phase (Y) output
* 48 VDC input/output
* Max 90 kVA / 72 kW AC output
* Max 72 kW DC output
* AC Distribution
* DC distribution option
* A+B option (dual AC input)
* LVBD option
* Up to 4 battery strings
* Built in transfer technology
* 150% overload capability, 15S
* 600% quick trip current 20 ms
* Hot pluggable
* Smartpack2 controller
* Operates in paralell with Flatpack2 rectifiers
* Global compliance
* Patented HE technology
Eltek Flatpack2 Integrated Power System 120kW With Optional A & B AC Input
Eltek Flatpack2 Integrated Power System 120kW With Optional A & B AC Input
Eltek Flatpack2 Integrated Power System 120kW With Optional A & B AC Input
Eltek Flatpack2 Integrated Power System 120kW With Optional A & B AC Input
Eltek Flatpack2 Integrated Power System 120kW With Optional A & B AC Input
Eltek Flatpack2 Integrated Power System 120kW With Optional A & B AC Input
Application
Eltek Flatpack2 Integrated Power System 120kW With Optional A & B AC Input

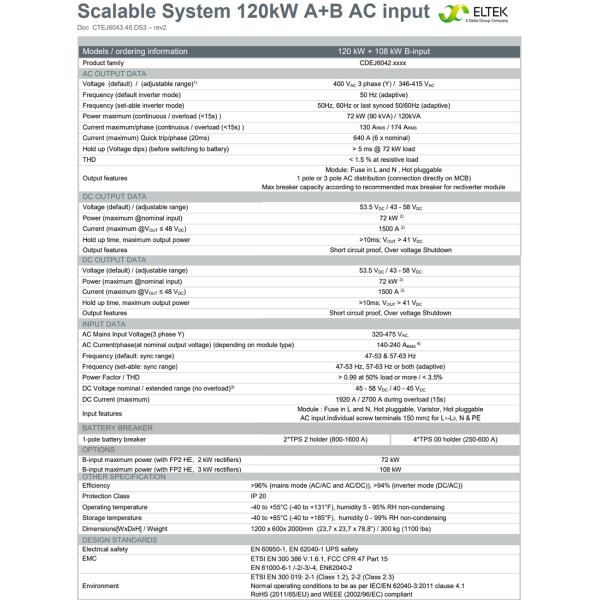

Specification
Place of Origin
Guangdong, China
Brand Name
Eltek
Model Number
Rectiverter Scalable System 120kW
Output Power
72kw
Output Type
Triple
Input Voltage
475VAC / 58VDC (Maximum)
Output Voltage
415VAC / 58VDC
Output Frequency
45-60Hz
Output Current
1500ADC
Model
Rectiverter Scalable System 120kW
Warranty
12 months
Customized support
OEM ODM Support
DC Input Current (maximum)
1920A
Max input Voltage
475VAC / 58VDC
Max Output Voltage
415VAC / 58VDC
Dimensions WxHxD (mm)
1200 x 2000 x 600mm
Weight
500kg
Ingress Protection (IP)
IP20
Operating temperature
-40 - 55 °C
