IP43 Cabinet Smartpack2 Controller Eltek Flatpack Power System 24/1800 HE Rectifier

Name: IP43 Cabinet Smartpack2 Controller Eltek Flatpack Power System 241800 HE Rectifier
Brand: xdsd, Eltek
Price: 500.00 USD

Quality IP43 Cabinet Smartpack2 Controller Eltek Flatpack Power System 24/1800 HE Rectifier for sale

Place of Origin : Guangdong, China

Brand Name : xdsd, Eltek

Model Number : Eltek Flatpack2 24V/48kW

Certification : DNV 2.4

Packaging Details : Cartons or Wooden Frame

Supply Ability : 100 Set/Sets per Month

Price : $500.00 - $1,999.00/sets

Output Power : 48kw

Output Type : Triple

Input Voltage : 220V

Output Voltage : 24V

Output Frequency : 50/65HZ

Output Current : 2000A

Application : Marine

Warranty : 12months

Name : Eltek Flatpack2 24V 48kw DC Power System

Dimension(W*H*D) : 800 x 1800 x 600 mm

Weight : 341 kg

Output : 24V

Efficiency : 91%

Ingress Protection (IP) : IP43

Input Current (maximum) : 2000 ADC

Port : shenzhen

Contact Now

Specification

Place of Origin	Shenzhen, China
Brand Name	xdsd
Model Number	Eltek Flatpack2 24V/48kW
Output Power	48kw
Output Type	Triple
Input Voltage	220V
Output Voltage	24V
Output Frequency	50/65HZ
Output Current	2000A
Application	Marine
Warranty	12months
Name	Eltek Flatpack2 24V 48kw DC Power System
Dimension(WHD)	800 x 1800 x 600 mm
Weight	341 kg
Output	24V
Efficiency	91%
Ingress Protection (IP)	IP43
Certification	DNV 2.4
Input Current (maximum)	2000 ADC

Recommend Products

Product Description

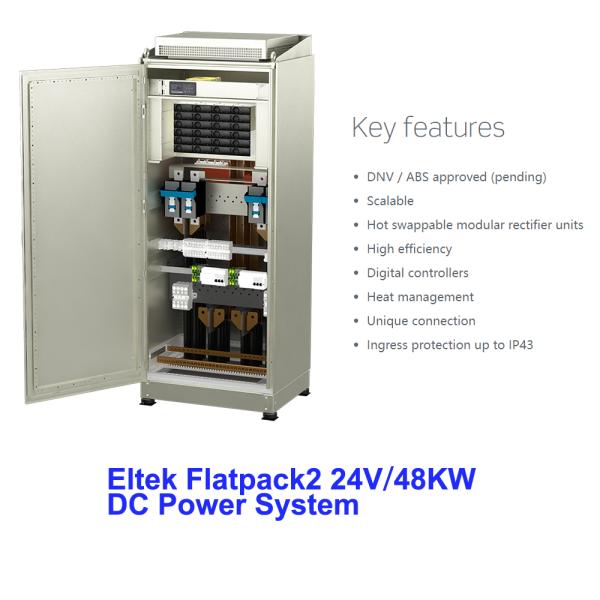

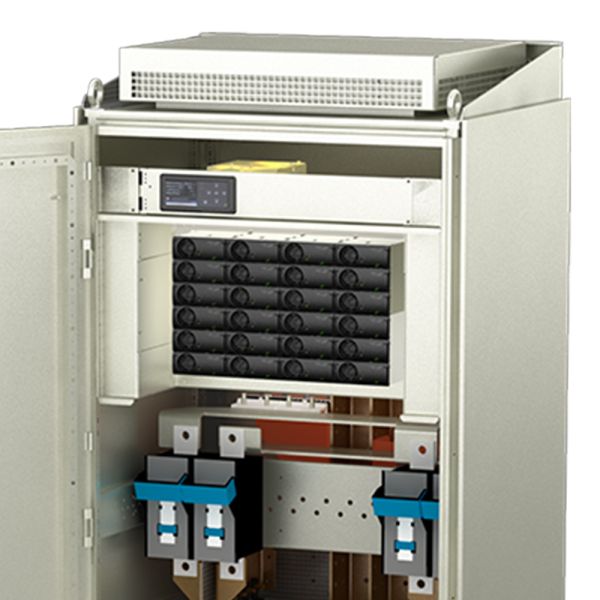

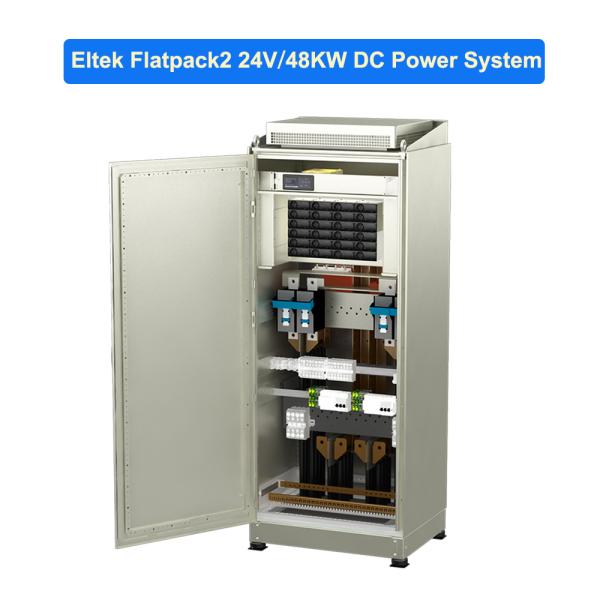

Flatpack2 24V/48kW DC power system:

The Flatpack2 24V 48kW has been specifically designed to meet the demand for higher density and more compact power solutions for marine applications worldwide. It is suitable for applications needing an expandable, easily serviceable and reliable power supply, fitting within aminimal space. The modular concept of the Flatpack2 systems makes it easy to scale the Flatpack2 24V/48kW to fit specific power needs from 4 to 48kW. A system with unused rectifier positions can be expanded later simply by adding more rectifiers. The power system is monitored by Smartpack 2 controller which has all the functionality required for present and future applications. It contains 6U of PRs (power rack) which can house 24 Flatpack2 rectifier modules.

Key features:

* DNV / ABS approved (pending)
* Scalable
* Hot swappable modular rectifier units
* High efficiency
* Digital controllers
* Heat management
* Unique connection
* Ingress protection up to IP43
